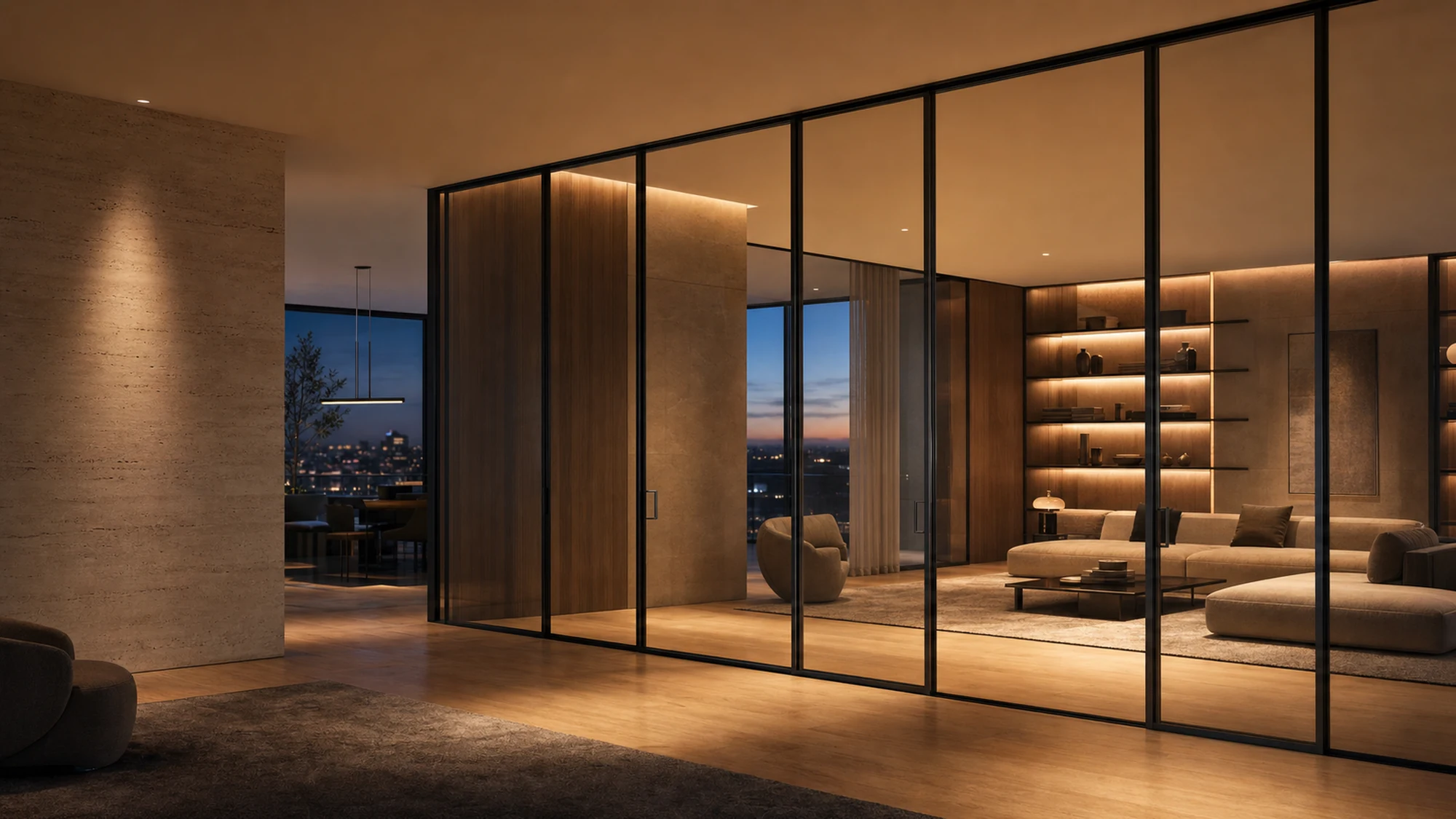

BE-SLIM specification drawings and finish samples on a specifier desk

For Architects.

Specify open privacy. Not another heavy wall.

Everything you need to specify.

CAD and BIM files, finish modules, dimensioned spec sheets, and warranty documents. The drawing-stage documentation that lets you place BE-SLIM into a project with confidence.

Spec sheet & warranty
Dimensioned specification sheets with the written warranty terms.
CAD / BIM files
DWG and RVT drawing files for every system family.
Finish module
The full frame finish palette as swatch references.

Specifier desk with BE-SLIM drawings — Spec desk

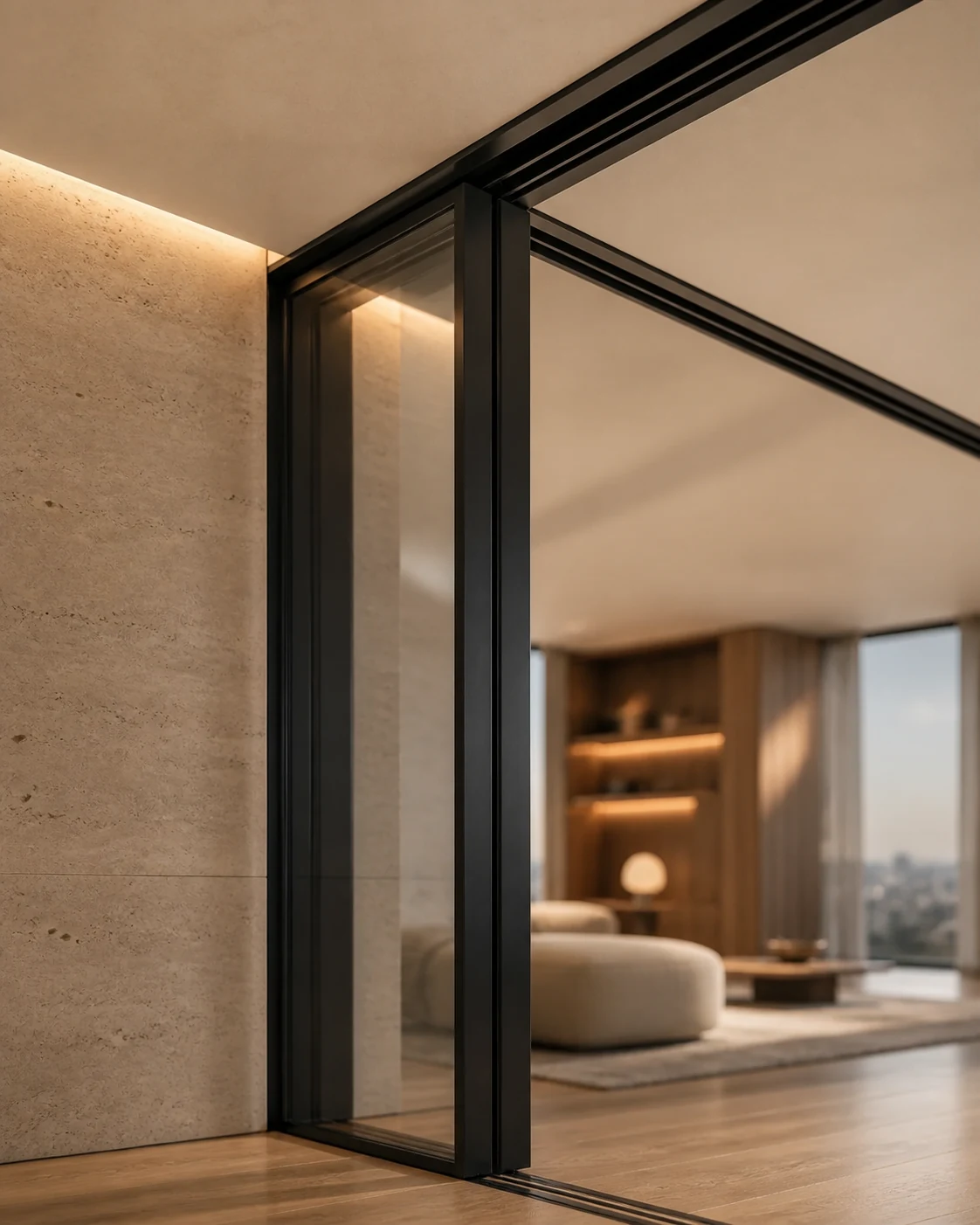

CAD and BIM drawing files for BE-SLIM systems — CAD / BIM

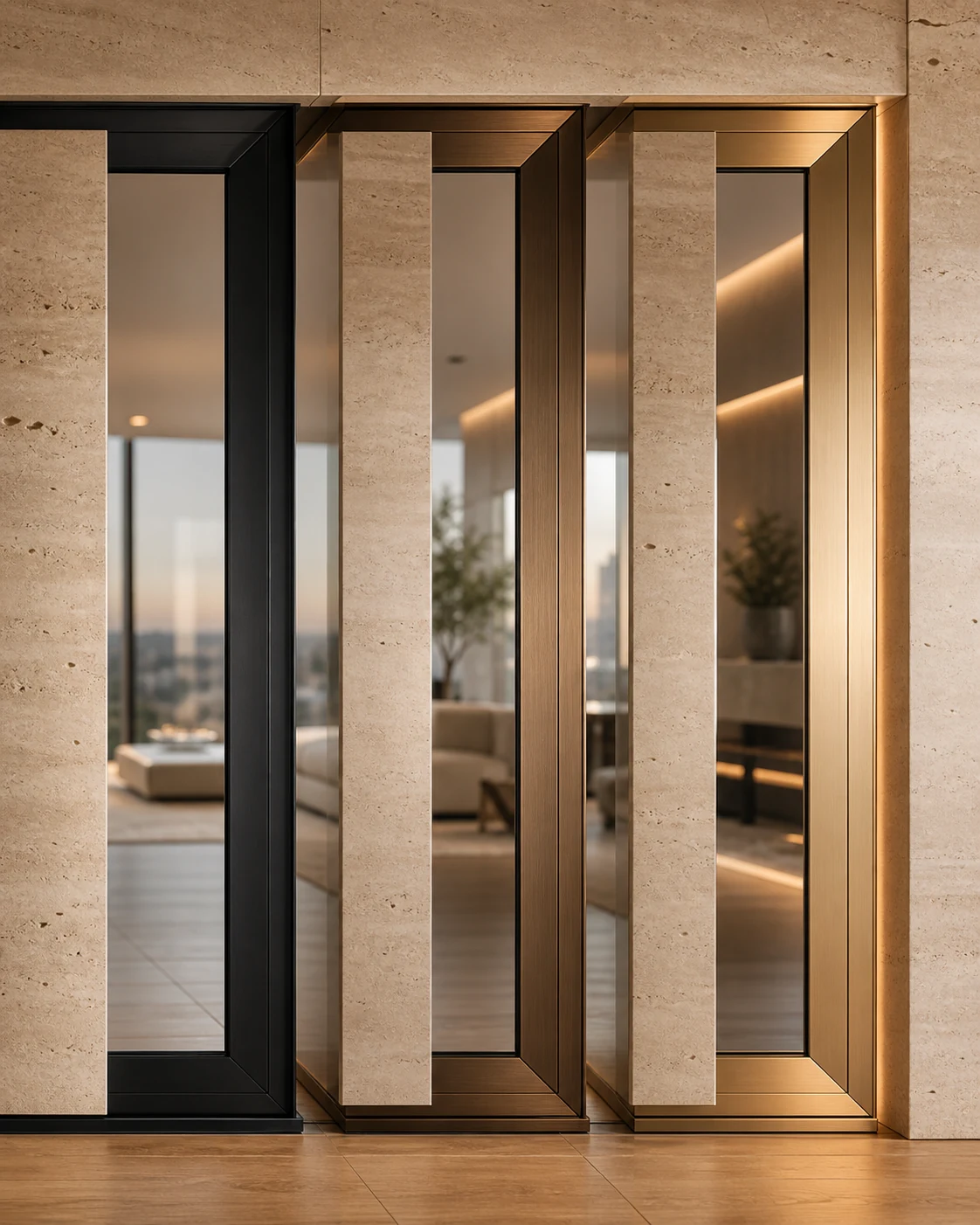

Aluminium frame finish swatch module — Finish swatches

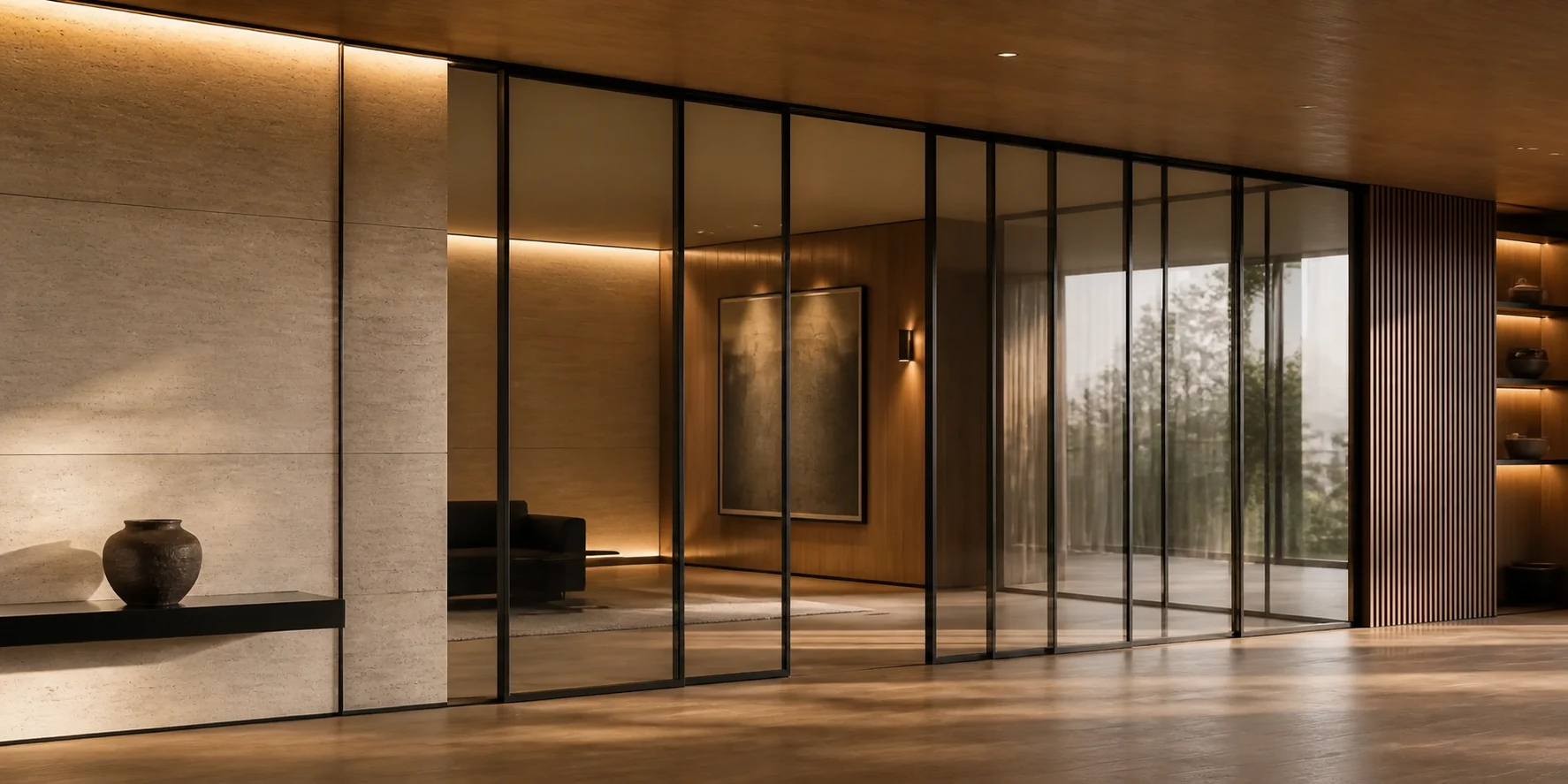

BE-SLIM specification sheet close-up — Spec sheet

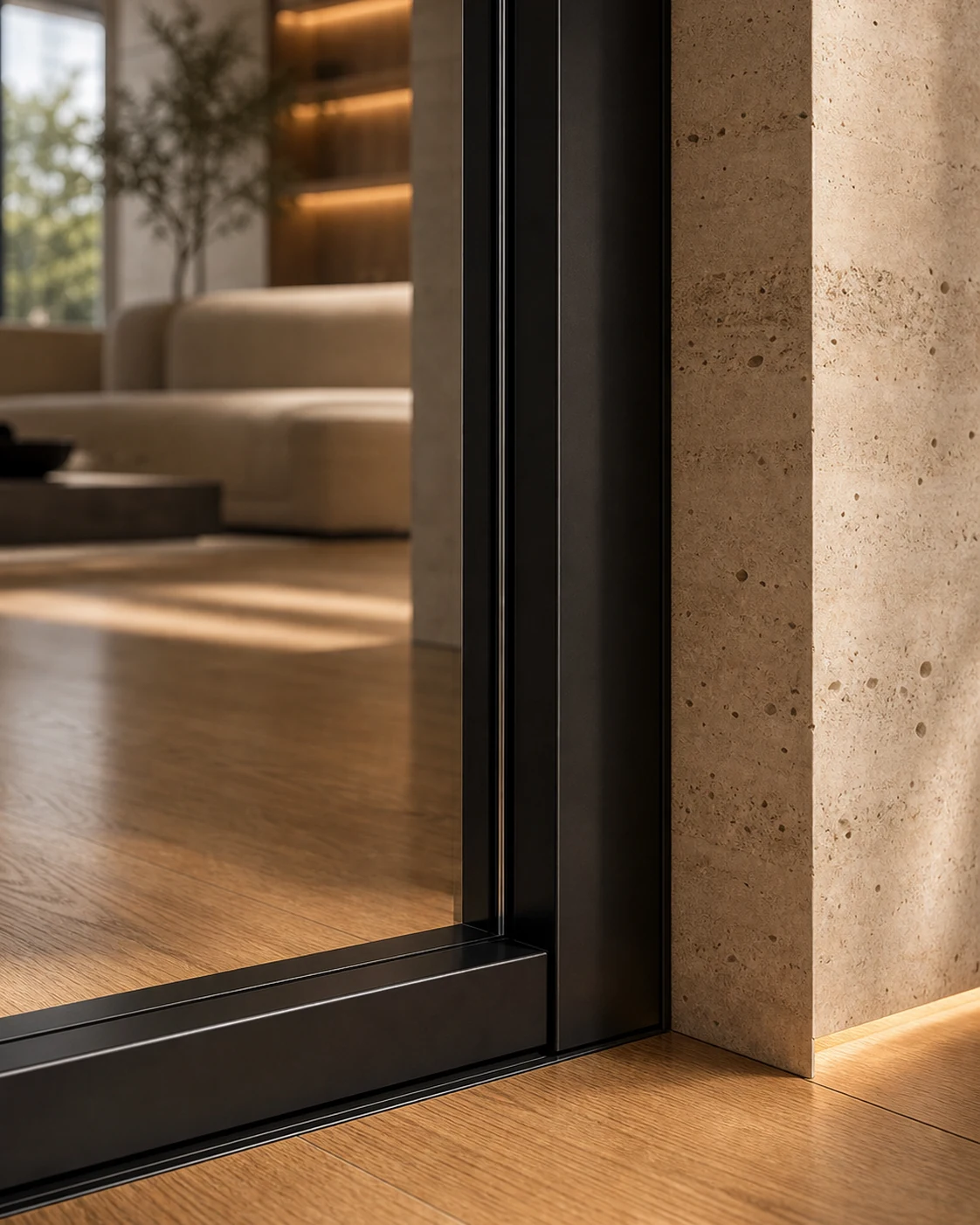

BE-SLIM warranty certificate — Warranty cert

0kg

Max load per sliding frame

0mm

Max frame height, sliding systems

0mm

Standard safety glass thickness

The Architect Spec Kit.

One request. Everything to write BE-SLIM into a specification without a follow-up call.

Profile drawings

all six system families

Configuration diagrams

single-panel, multi-panel, corner, T-junction

Finish palette with codes

black matt, brushed gold, rose gold, anodised, powder-coated

Glass options

8 mm CTG, fluted, frosted; 9.52 mm fabric laminated; laminated safety on request

Installation constraints

clearance requirements per system

Warranty terms

3-year hardware, 10-year coating

Direct project support line

WhatsApp, reply within one working day

Request Architect Spec Kit

System envelope at a glance.

Real catalogue numbers. Send the Spec Kit request for full profile drawings, configuration diagrams, and CAD/BIM files.

Systems

Fixed · Telescopic · Synchronized · Two-Way Soft-Close · One-Way Soft-Close · Slide-and-Fold

Max frame width (sliding)

Up to 1200 mm

Max frame height (sliding)

Up to 3000 mm

Max load per frame (sliding)

Up to 120 kg

Max frame width (slide-and-fold)

Up to 700 mm per leaf

Max frame height (slide-and-fold)

Up to 2400 mm

Glass thickness (standard)

8 mm CTG · 8 mm fluted · 8 mm frosted

Glass thickness (fabric laminated)

9.52 mm

Frame finishes

Black matt · Brushed gold · Rose gold · Anodised · Powder-coated

Soft-close

Silent-close hardware, all sliding systems

Hardware warranty

3 years

Coating warranty

10 years

Installation process

25-30 days after site measurement and drawing approval

View all six systems→Full glass specifications→

Specify glass by what it has to do.

8 mm CTG

Visibility. When the room should stay one room.

8 mm fluted

Light without a clear view.

8 mm frosted

Full privacy, soft light.

9.52 mm fabric laminated

Textile finish with laminated safety behaviour.

Full glass specifications→

BE-SLIM warranty certificate and finish palette documentation

3-year hardware. 10-year coating. In writing.

Specifier resources on request.

Spec sheets, CAD and BIM files, finish palette references, and warranty documents are all available. Send a project brief via the spec line and receive everything in one response.

Spec sheets (PDF) for all six system families

CAD and BIM files (DWG, RVT) on request

Finish palette references with codes

Warranty documentation: 3-year hardware, 10-year coating

Send a project brief on WhatsApp→
